SimpleBLE for Trig TY91 and TY92 radios - For SkyDemon

IMPORTANT NOTICE: The RS232 implementation is only tested on Trig control unit firmware V1.6 and newer. Earlier versions may not work, so you will need to send radios with older firmware back to Trig for a software update.

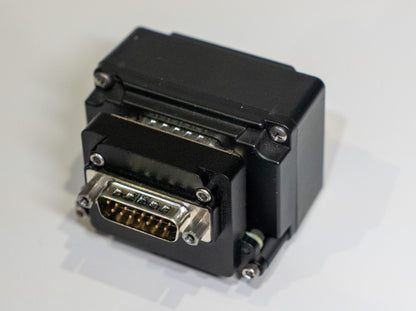

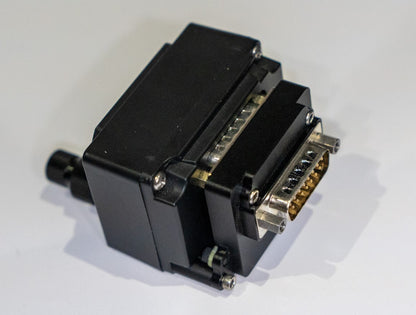

A purpose built, fully plug and play Bluetooth adapter for your Trig TY91 or TY92 radio.

Send frequencies to your radio from Skydemon with Bluetooth, AND connect your existing EFIS!

Features:

• Bluetooth Low Energy protocol
• Fully Plug and Play with Trig TY91/TY92 radios

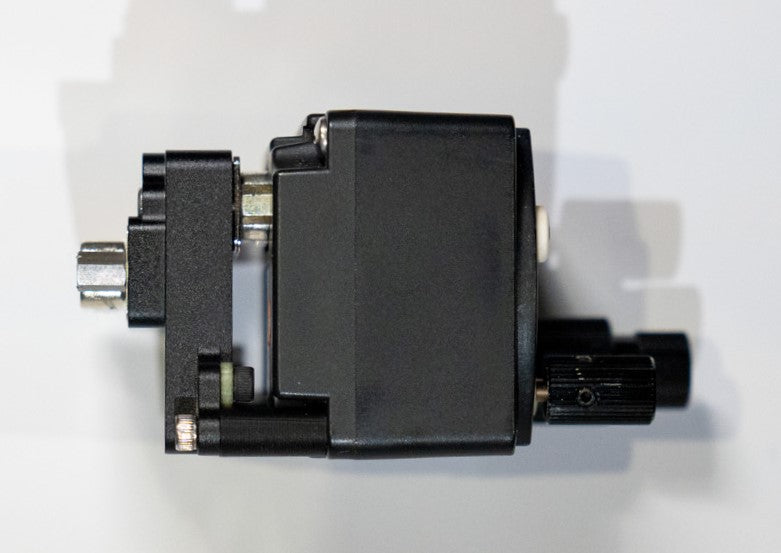

• Compact - fits within the outline of the Trig TC90 radio control head
• CNC machined 6061 aluminium housing and full strain relief for the radio connector
• Purpose built electronics with protected voltage regulation
• Includes stainless steel mounting screws
• No wiring needed
• Amphenol connectors with gold-plated pins

This adapter has a second serial port to connect to your EFIS, and the pinout remains the same as the original Trig pinout. The data from the Bluetooth and EFIS ports is packetised and buffered through the adapter. This means that if both your EFIS and Skydemon send information at the same time, the data won't be corrupted. If you already have your EFIS connected to your Trig radio, this will continue to work as normal, with added Skydemon control.

A 3/32" allen key is required for installation.

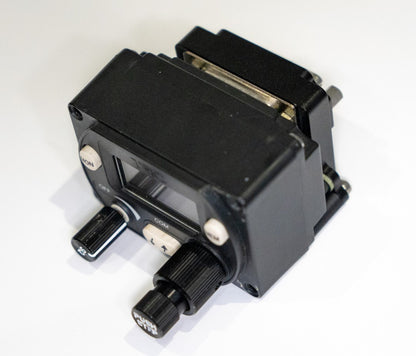

Trig TC90 is for illustration only and is not included
