SimpleBLE for Funke ATR833 Radios - for SkyDemon

ORDERS WILL BEGIN SHIPPING FROM 2ND OCTOBER

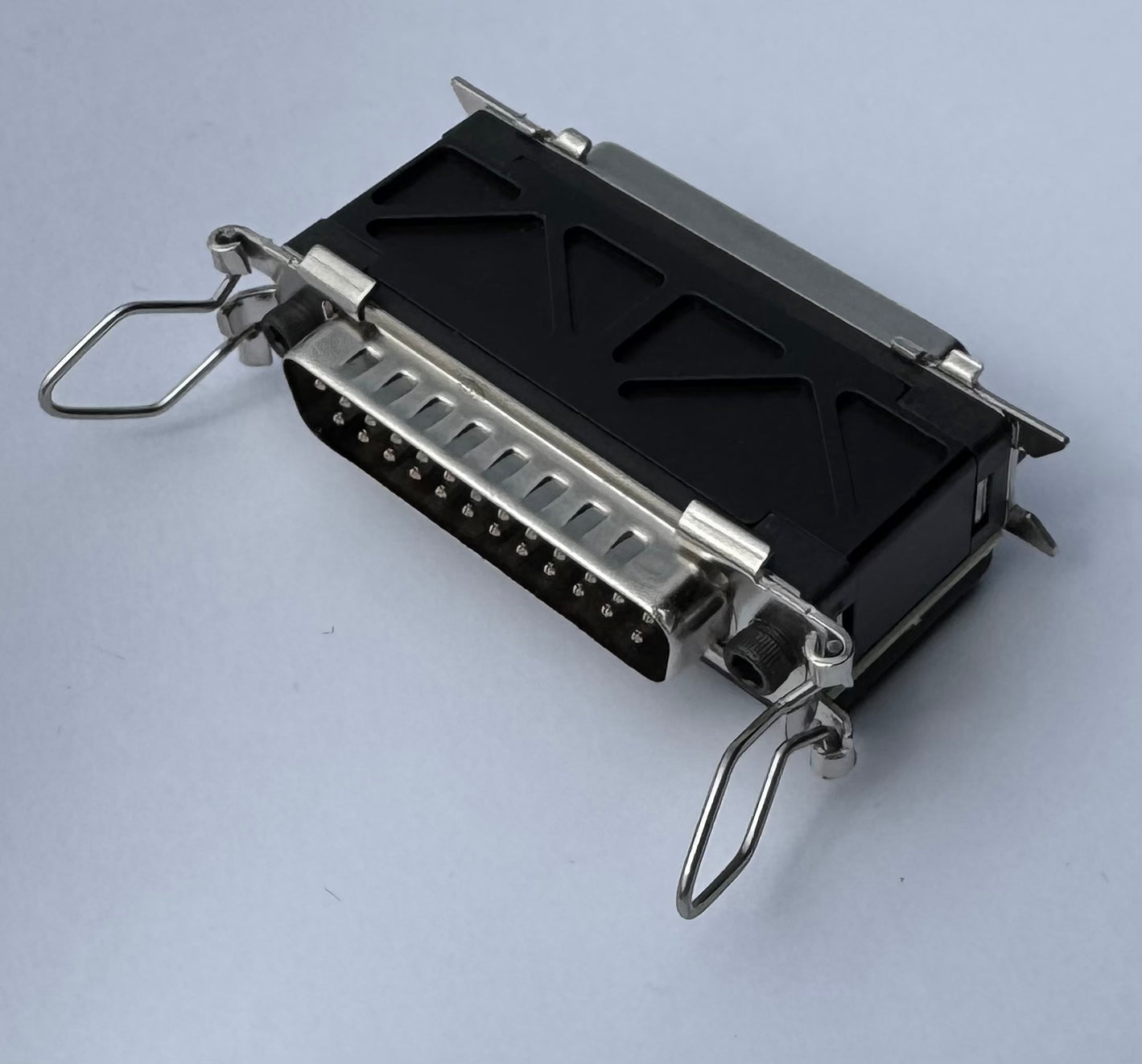

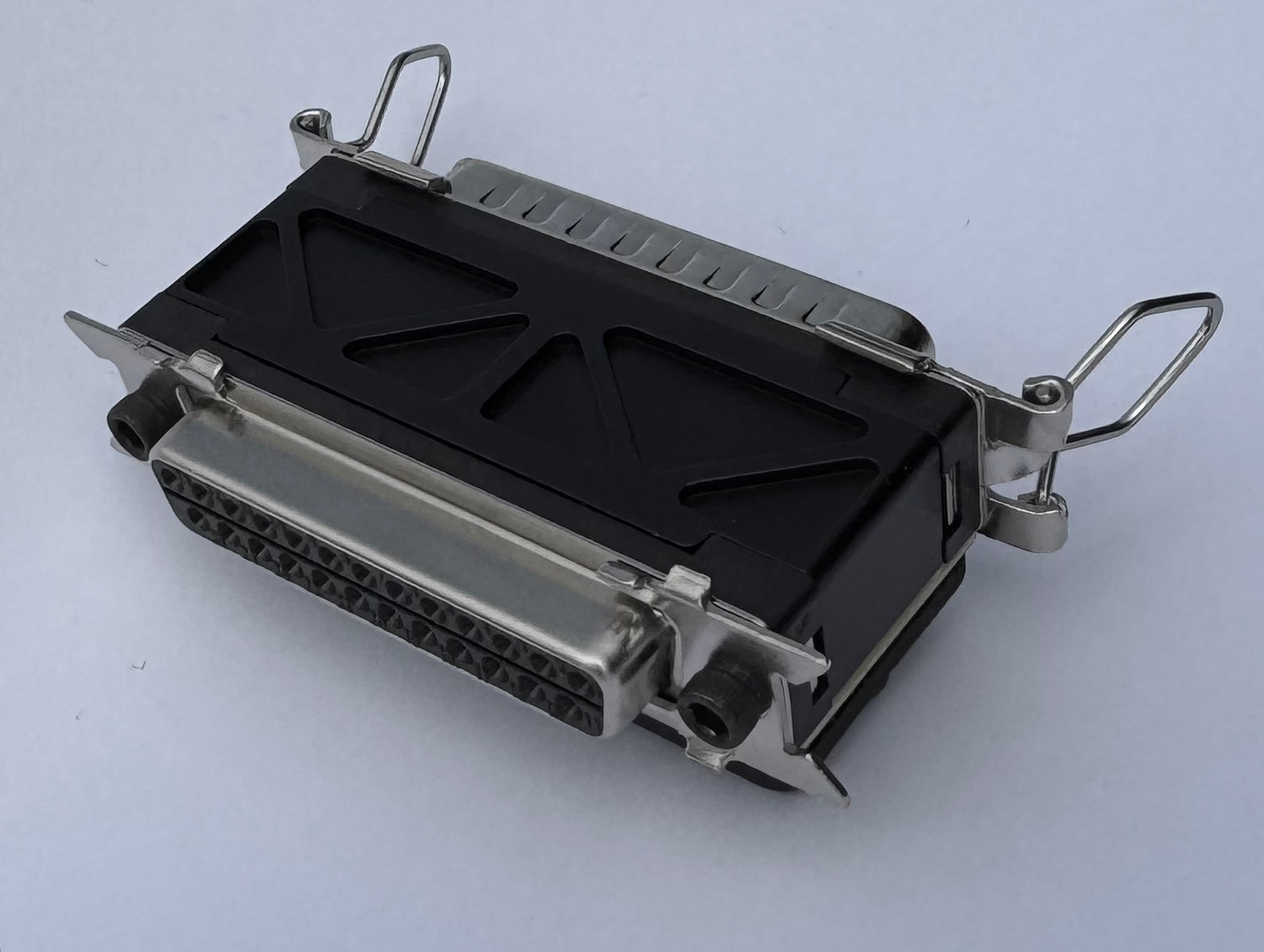

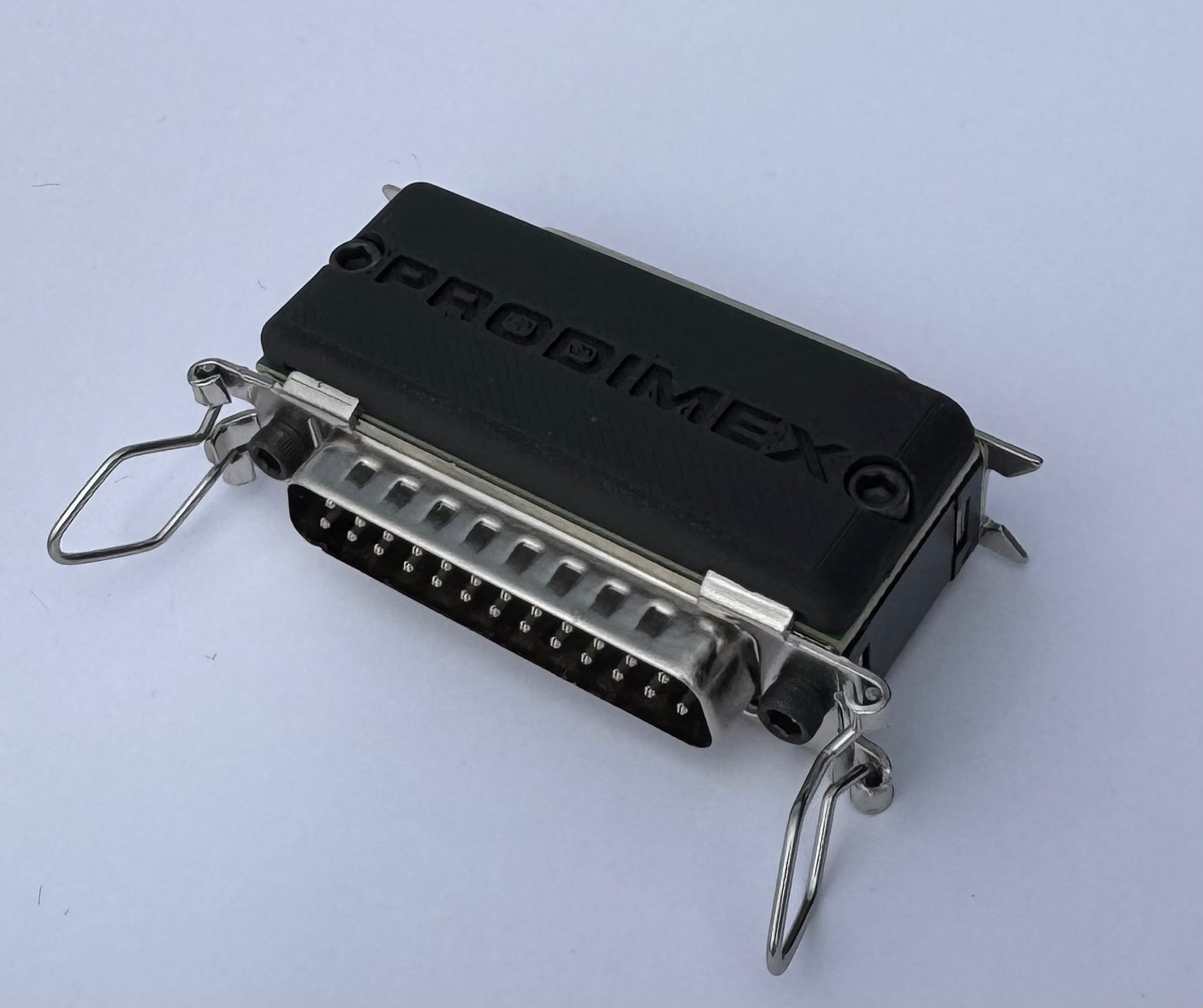

A purpose built, fully plug and play Bluetooth adapter for your Funke ATR833S, ATR833-II or ATR833-II OLED radio.

Send frequencies to your radio from Skydemon with Bluetooth, AND connect your existing EFIS!

Features:

• Bluetooth Low Energy protocol
• Fully Plug and Play with ATR 833 series radios
• Compact - 2/3rd the length of alternative products. Adds only 28mm to the connector length.
• CNC machined 6061 aluminium structural housing with 3D printed electronics cover.
• Purpose built electronics with protected voltage regulation
• Includes stainless steel mounting screws
• No wiring needed
• Amphenol connectors with gold-plated pins

Supply voltage: 6-60V with protection for high voltage spikes from aircraft's starter motor.

Size: Adds only 28mm to your existing connector length, perfect for compact installation with minimal added strain on the radio connector.

This adapter has a second serial port to connect to your EFIS, and the pinout remains the same as the original Funkepinout. The data from the Bluetooth and EFIS ports is packetised and buffered through the adapter. This means that if both your EFIS and Skydemon send information at the same time, the data won't be corrupted. If you already have your EFIS connected to your Funke radio, this will continue to work as normal, with added Skydemon control. Furthermore, data is filtered so only the required packets for the Funke radio are transmitted to the radio, so sending other data (such as NMEA autopilot data) will not affect the radio.

No tools are required for installation.
